If you’ve ever heard of heating systems described by letters - like S, W, or Y - you might be wondering what these actually mean.
In short, these letters describe the layout and control design of a central heating system - the plumbing and wiring arrangement that decides how your boiler, hot water cylinder, and radiators all interact.
While many modern homes have moved toward combi boilers (which provide heating and hot water on demand without a separate cylinder), Y Plan systems remain common in older properties across the UK.
They’re efficient when working correctly - but understanding how they function can save you a world of confusion if something goes wrong.
Here’s everything you need to know about Y Plan heating systems, including how they work, how they differ from other setups, the pros and cons, common faults, and when it might be time to upgrade.
What Is a Y Plan Heating System?
A Y Plan heating system uses a single three-port motorised valve to control where the hot water from your boiler goes - to your radiators, your hot water cylinder, or both simultaneously.

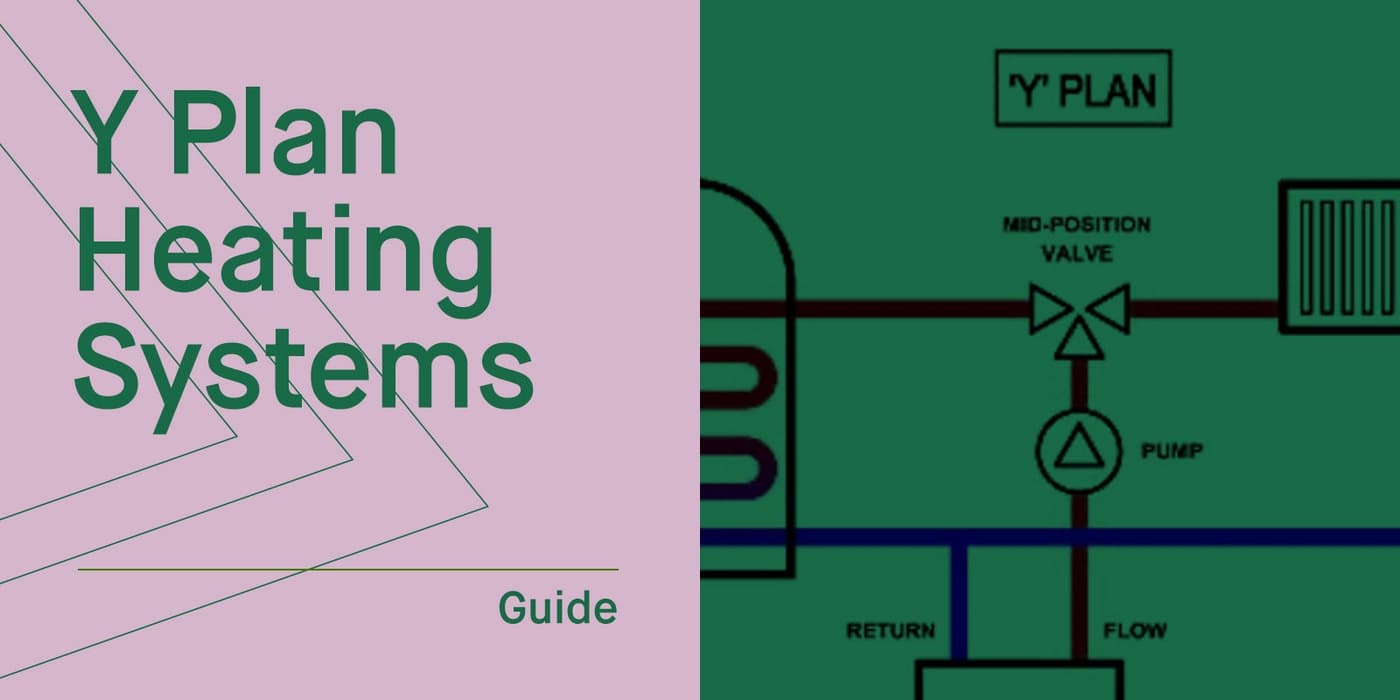

It gets its name from the Y-shaped layout of the pipework on a diagram.
The “stem” of the Y brings hot water from the boiler, while the two “arms” branch off to your hot water cylinder coil and radiators.
This setup allows a Y Plan system to:
Heat hot water only,
Heat radiators only, or
Heat both at the same time (known as the “mid-position”).
That flexibility is what made Y Plans so popular in the late 1970s and 1980s - especially in homes with conventional boilers and vented hot water cylinders.
Key Components of a Y Plan System
To really understand how a Y Plan works, it helps to know what each part does. Here’s what you’ll typically find:
1. Boiler
The heart of the system - it heats the water that’s then distributed through your radiators and cylinder. Y Plans work with regular or system boilers.
2. Hot Water Cylinder
Stores the domestic hot water supply. Inside, a heating coil transfers heat from the boiler water to your usable hot water.
3. Three-Port Motorised Valve
The star of the show. This clever valve controls the flow of hot water, directing it to:
Hot water only (HW)
Central heating only (CH)
Both (mid-position)
The valve is often labelled as “HONEYWELL V4073A”, one of the most common and long-standing models on the market.
4. Room Thermostat
Detects the temperature in your home and tells the system when to switch the heating on or off.
5. Cylinder Thermostat
Attached to the hot water cylinder, it senses when your stored water reaches the set temperature (usually around 60°C).
6. Programmer/Timer
Allows you to set specific schedules for when you want heating or hot water.
7. Pump
Circulates the hot water around the system.
Pros and Cons of a Y Plan Heating System
Advantages of a Y Plan Heating System
Despite being an older design, Y Plans still offer a few key advantages:
✅ Compact Design
With only one valve, they take up less space in the airing cupboard - ideal for smaller properties.
✅ Simpler Installation
Less pipework and wiring compared to an S Plan, which can make installation quicker and cheaper.
✅ Lower Initial Cost
Fewer components mean reduced upfront expense, which made Y Plans popular for developers in the 80s and 90s.
✅ Dual Control
You can heat water and radiators together or separately, providing flexibility that gravity-fed systems never offered.
Disadvantages of a Y Plan System
As technology has moved on, the Y Plan has started to show its age.
⚠️ Mechanical Wear
The single valve does all the work. Over time, motors, springs, or internal seals wear out - often causing intermittent heating problems.
⚠️ Limited Control
You can’t easily split heating zones (e.g., upstairs vs downstairs). For that, an S Plan or smart control system is better.
⚠️ Energy Efficiency
Because the Y Plan can’t always isolate circuits perfectly, small amounts of unwanted heat can travel into the wrong zone - reducing efficiency slightly compared to modern designs.
⚠️ Common “Ghost Heating”
Radiators may heat up when only hot water is selected - often caused by a worn valve or electrical backfeed.
Y Plan Heating System Common Issues
Common Y Plan Heating System Problems
Even the best-maintained systems develop issues eventually.
Here are some of the most common faults:
1. Radiators Warm When Hot Water Is On
Cause: A leaking or sticking three-port valve.
When the valve doesn’t fully close, hot water seeps into the heating circuit.
Fix: A heating engineer can replace the actuator head or entire valve (usually £80–£120 for parts).
2. No Heating or No Hot Water
Cause: Faulty microswitch or motor within the valve, or thermostat failure.
Fix: Testing with a multimeter can confirm which signal isn’t reaching the boiler. Replace the faulty component.
3. Valve Stuck After Summer
When heating hasn’t been used for months, the valve spindle can seize.
Fix: A light tap can sometimes free it temporarily - but if it keeps happening, replace the valve to prevent motor burnout.
4. Boiler Firing Constantly
If your boiler fires even when no heat is called for, the orange wire may still be live due to a stuck microswitch inside the valve.
Fix: Replace the actuator head or motor assembly.
5. No Power to Valve or Pump
Cause: Wiring centre issues or failed controls.
Fix: Have a qualified electrician trace the circuit - never attempt electrical heating work yourself.
When to Replace Your Y Plan or Boiler
A Y Plan system can easily last 20+ years if maintained, but there are times when replacement makes sense:
Your boiler is over 15 years old
Repairs are becoming frequent or costly
The system is beyond economical repair (BER) - i.e., repairs would cost over 60% of a replacement
You’re upgrading your home and want smart or zoned heating
If you’re already investing in a new boiler, it’s often worth modernising the entire system to an S Plan or combi setup for better efficiency and fewer moving parts.
Modern Alternatives
🔹 S Plan Upgrade
Ideal if you want more control, separate zones, or integration with smart thermostats like Hive or Nest.
🔹 Combi Boiler Conversion
Removes the hot water cylinder altogether - freeing up space and reducing pipework.
Perfect for smaller homes or those with decent mains pressure.
🔹 System Boiler + Unvented Cylinder
For larger homes, this offers mains pressure hot water to multiple taps at once - ideal for families.
