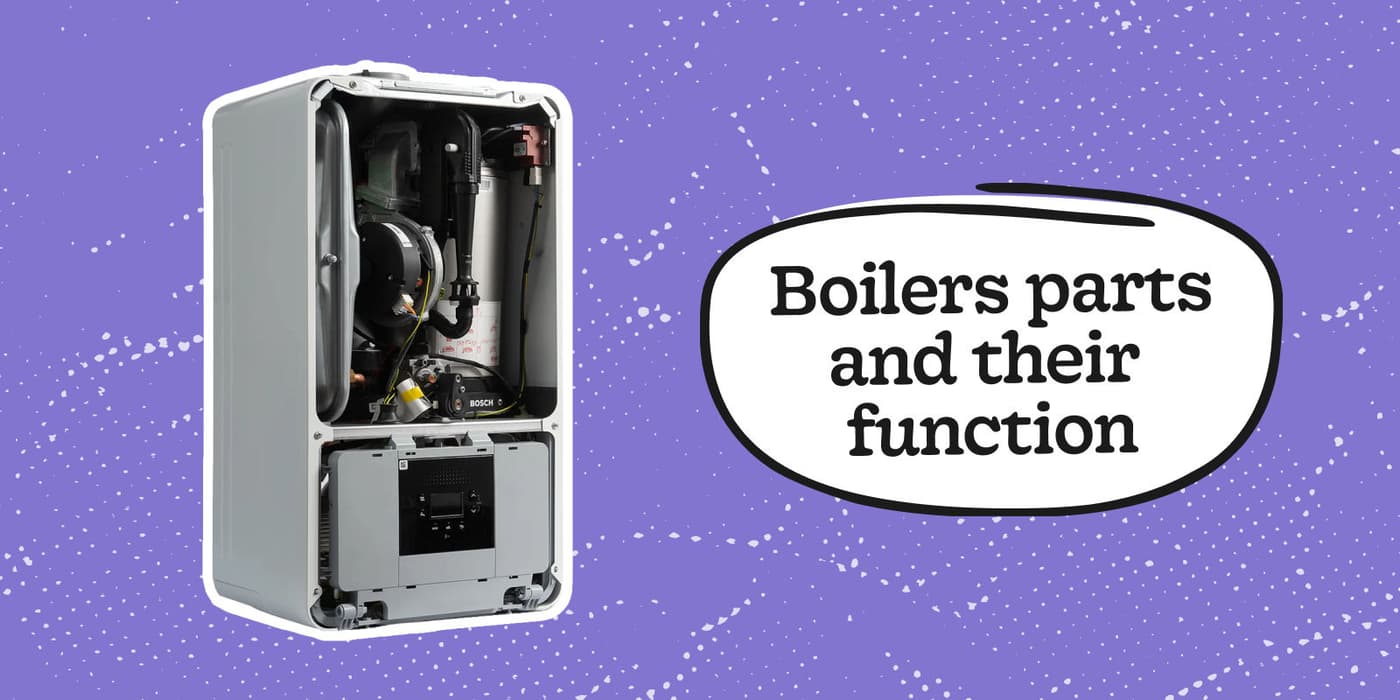

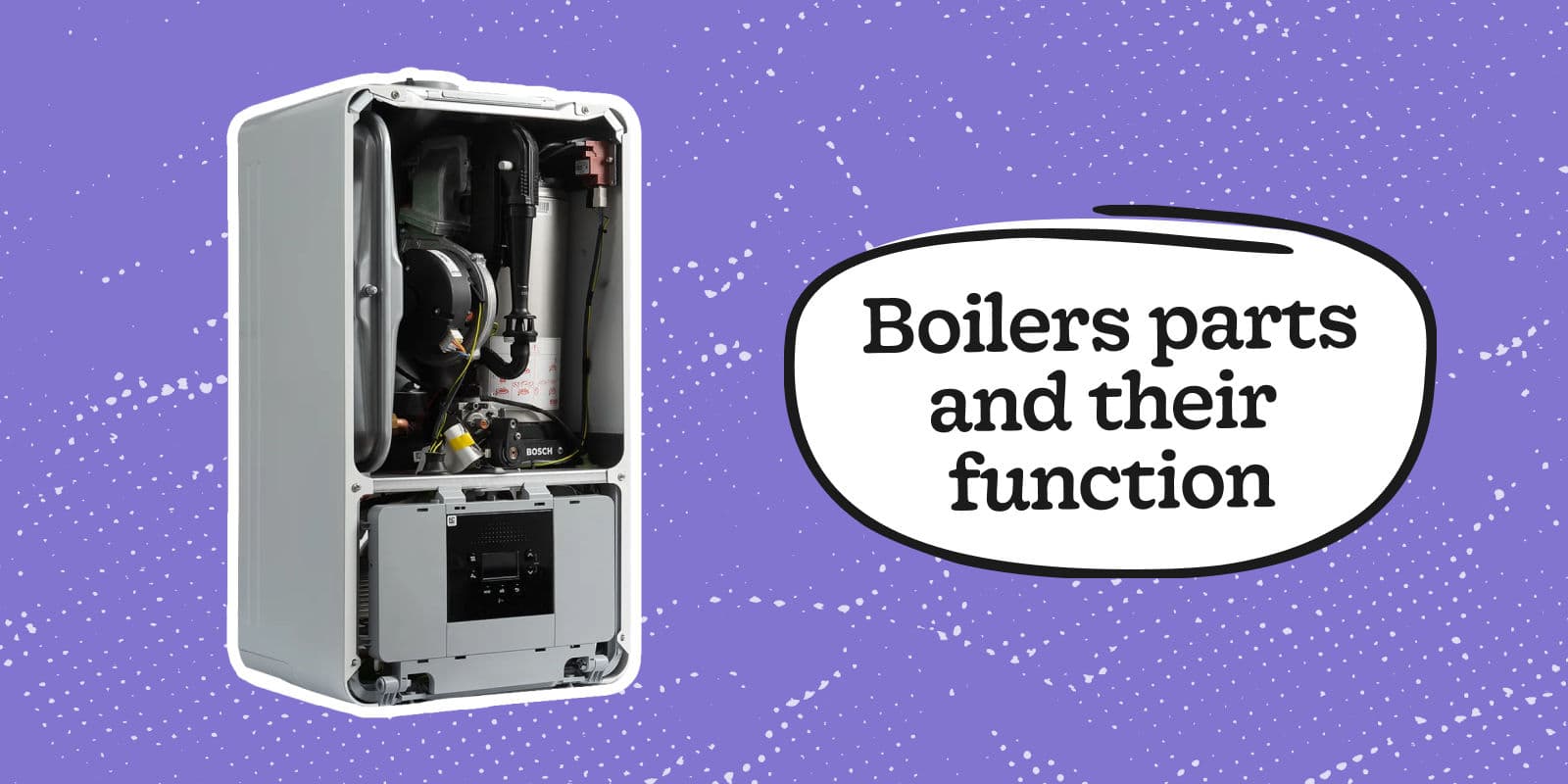

What’s inside your boiler? Heatable reveals the key parts - burner, heat exchanger, and more - to demystify your heating.
Picture this: It’s a dreary British morning, your boiler’s clanking like a bag of spanners, and you’re wondering what the bloody hell’s going on inside that mysterious box. Is it magic? Gremlins? A tiny dragon breathing fire? If you’ve ever scratched your head over how your boiler keeps you warm, you’re in the right place.
Here at Heatable, we’re peeling back the lid (not literally - don’t try that at home) to reveal the parts of a boiler. No jargon overload - just the bits that matter explained so you can nod knowingly when the engineer rocks up.
Reality check: If your boiler’s so ancient it’s coughing up coal dust, skip the anatomy lesson and grab a new one from us. Quote in 60 seconds, fitted as fast as tomorrow, with up to 4 years 0% APR. Done.
Quick Takeaways:
Boilers Are Team Players: Loads of parts work together to heat your home and water.
Know the Basics: Spotting a dodgy bit could save you a panic.
Modern Kit’s Ace: New boilers pack clever upgrades - worth a look if yours is knackered.
Let’s dive in before your radiators give up the ghost.
What Makes Up a Boiler?
Your boiler’s not just a metal box - it’s a mini factory, turning gas (or oil) into glorious heat for your rads and taps.
Each part’s got a job, and when they’re all humming along, you’re toasty. When they’re not? You’re googling “Why is my house an igloo?” Here’s the rundown of the key players inside a typical gas combi boiler (the UK’s fave).
Key Takeaway: A boiler’s a jigsaw - every piece counts and one duff bit can ruin the picture.
The Boiler All-Stars: Meet the Parts
Here’s the lineup - think of it as your boiler’s internal organs, minus the gore:
#1 Boiler Burner
The fire starter. This is where gas meets a spark (or pilot light in old models) to kick off combustion. It’s the heart of the heat-making magic - dodgy burner, no warmth.
#2 Heat Exchanger
The hotshot middleman. This metal marvel takes the burner’s heat and transfers it to the water zipping through your system. Clogged or cracked? You’re in for cold showers.
#3 Boiler Pump
The water mover. Pumps hot water from the heat exchanger to your radiators or taps - think of it as the boiler’s circulatory system. If it’s sluggish, your rads stay chilly.
#4 Expansion Vessel
The pressure peacemaker. This little tank handles water expansion as it heats up, keeping pressure steady (1-1.5 bar is the sweet spot). Faulty? Expect leaks or a sulky boiler.
#5 Boiler Flue
The exhaust pipe. Whisks away nasty gases (carbon dioxide, water vapour, and carbon monoxide if things go pear-shaped) so you don’t breathe ‘em. Blocked flue = big trouble.
#6 Ignition System
The spark of life. Modern boilers use electronic ignition to light the burner - older ones might have a pilot light that’s always flickering. No spark, no heat.
#7 Boiler Fan
The air traffic controller. Pulls in fresh air for combustion and helps push gases out of the flue. Noisy or knackered fans mean inefficient burning - or a shutdown.
#8 Boiler Diverter Valve
The multitasker (in combi boilers). Switches water between heating your rads and your taps. Sticks? You’re picking between a warm house or a hot shower.
#9 Pressure Relief Valve (PRV)
The PRV is the safety net. If the pressure gets too high (over 3 bar), this releases excess water to stop your boiler going boom - literally a lifesaver.
#10 Control Panel
The brains. Knobs, dials, or a fancy screen - lets you tweak temps, timers, and modes. Confusing controls? Check our Boiler Controls & Settings guide.
Fancier boilers might chuck in extras like condensate pipes (for condensing models) or smart sensors, but this lot’s the core crew in most setups.
How Do They Work Together?
It’s a proper team effort:
The fan sucks in the air, mixing it with gas at the burner.
The ignition sparks it up, creating a flame.
The heat exchanger grabs that heat and warms the water.
The pump shoves it to your rads or taps, guided by the diverter valve (if it’s a combi).
The flue chucks out the waste gases, while the expansion vessel and pressure relief valve keep things safe and steady.
You tweak the control panel to tell it what you want - heat, hot water, or both.
When it’s ticking over, it’s a symphony. When a part’s off-key? You’re left with a clunking mess or a cold house.
Why Should You Care?
Because knowing your boiler’s bits isn’t just pub quiz fodder - it’s practical:
Spot Trouble: Noisy pump? Cold rads? Leaky valve? You’ll know what’s up before the engineer’s even parked.
Save Cash: Catch a failing part early, and you dodge a full meltdown - repairs beat replacements any day.
Efficiency Boost: Clean parts (like a clear heat exchanger) mean less gas guzzling - your wallet says ta.
Upgrade Smarts: Old boiler missing modern bits? New ones pack condensing tech and smart controls- game-changers.
“If your boiler’s rattling like a skeleton in a tin, know your parts. Or bin it for a new one—pretty please.” – Phill Cox, Heatable’s Sales Director.
Common Questions:
What’s that banging noise? Could be a knackered pump or air in the heat exchanger - bleed your rads or call a pro.
Why’s there water under it? Leaky pressure relief valve or a cracked expansion vessel - Gas Safe engineer time.
Flue blocked? Black marks or weird smells? Shut it off and get it checked - carbon monoxide’s no joke.
How Much to Fix or Replace?
The costs will depend on the boiler part that needs to be fixed or replaced, but here’s a rough estimate:
Part Repairs: £50-£150 (pump, valve) to £200-£300 (heat exchanger) - depends on the faff.
New Boiler: From £1,800 fitted - quote in 60 seconds, next-day install, 0% APR available from us.
Factor in lower bills and fewer breakdowns - it’s worth keeping the team in shape.
Is It Worth Knowing?
You bet your soggy slippers it is. Understanding your boiler’s guts means you’re not clueless when it conks out - and you’ll impress the engineer with your savvy. Plus, if your setup’s a relic, a new boiler with shiny parts could transform your winter.
